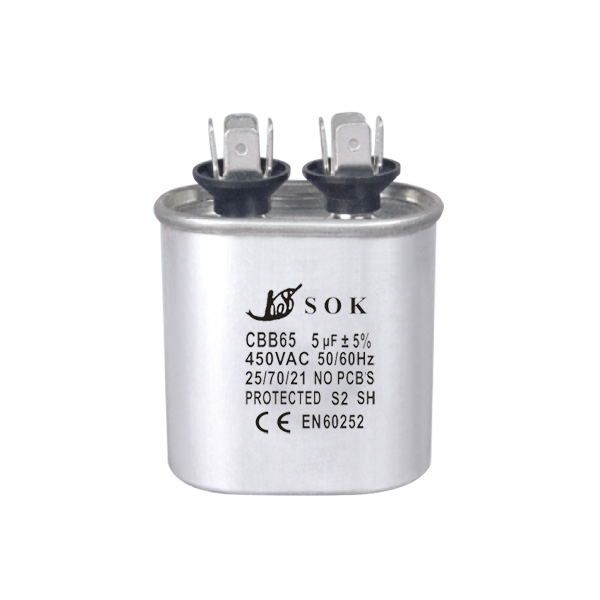

CBB65 Oil filled metallised polypropylene film capacitor for air conditioning systems. Capacitance range 2-120µF, rated voltage 100VAC-630VAC.

⁴

The characteristic and function

CBB65 Oil filled metallised polypropylene film protection function built-in, Low-Loss and inherent temperature rise, Small and compact, It is widely used to air conditioning, refrigerators, lamps etc.

Products Overall Dimension

Technical Features

Parameter	Value
Dielectric	Oil filled metallized polypropylene film
Case and cover	Round or oval aluminium case
Fixing	M8 fixing stud (on request)
Terminals	6.3 quick connect terminals
Climatic category	25/85/21
Rated capacitance	2-120µF
Rated voltage	100VAC~630VAC
Capacitance tolerance	±5%, ±10%, -5%+10%
Rated frequency	50/60 Hz
Max working voltage	1.1 Un at 50 Hz
Test voltage between terminals	2 Un for 2 sec. 50 Hz
Test voltage between terminals and case	2000 Vac for 2 sec.
Class of safety protection	S2
Insulation resistance	T-T≥3000MΩ
Dissipation	≤20×10⁻⁴ (Un and 50 Hz)

Dimension(mm)

CAP(uf)	250VAC		370VAC		440/450VAC		OVAL 370VAC
CAP(uf)	Dia	Height	Dia	Height	Dia	Height	Width	Length	Heigth
3	40	60	40	60	40	60	31.5	52	40
4	40	60	40	60	40	60	31.5	52	40
5	40	60	40	60	40	60	31.5	52	50
7.5	40	60	40	60	40	60	31.5	52	70
10	40	60	40	70	40	70	31.5	52	70
12.5	40	60	40	70	40	70	31.5	52	100
15	40	70	40	80	40	80	31.5	52	100
20	40	70	40	80	40	80	45	71	80
25	40	80	45	90	45	90	45	71	80
30	40	80	50	90	50	100	45	71	80
35	45	90	50	100	50	100	45	71	80
40	45	90	50	110	50	110	45	70	90
45	45	90	50	120	50	120	45	70	100
50	45	90	50	120	50	120	45	70	100
55	50	90	50	120	50	120	45	70	110
60	50	90	55	120	55	120	45	70	120
65	50	100	55	120	55	120	45	70	120
70	50	120	55	120	60	120	45	70	120
80	50	120	55	120	60	120	45	70	120
20+5	40	80	50	80	50	90	45	70	80
25+5	45	90	50	80	50	90	45	70	80
30+5	45	90	50	90	50	100	45	70	90
35+5	45	90	50	100	50	110	45	70	100
40+5	45	100	50	110	50	120	45	70	110
50+5	50	100	50	120	55	120	45	70	120
55+5	50	100	55	120	55	120	45	70	120
60+5	50	100	55	120	55	120	45	70	120
